Product Catalog

• Efficiency: 94%
• Heating Efficiency: 94%
• Type: Heat recovery
• Capacity: 0
• Air Flow Cubic Ft Min: 330 cubic ft/min
• Sound: 0
• Efficiency Range: 90%+ ASE

Features

• Brings in fresh air and expels stale, sometimes unhealthy air
• High-efficiency heat recovery core pre-conditions incoming air to minimize heat energy loss
• Prefilters particulates from incoming air and outgoing air to protect core
• Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
• Capable of intermittent- or continuous operation depending on control used
• Automatically defrosts when outdoor temperatures are below 23°F
• Designed for quiet operation
• 10-year parts limited warranty upon timely registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

EFFICIENCY

Heating Recovery (ASE) Up to 94% at 32 °F

ENERGY STAR® Canada qualified

PERFORMANCE

Maximum Airflow 330 cubic feet per minute

Sound Quiet operation

CONVENIENCES

Filter Change Easy access hinged door for filter cleaning and core cleaning

TECHNOLOGY

Core Polypropylene, crossflow designed core

Core Protection Incoming and outgoing air is prefiltered

Compatible Controls Evolution ® or separate ventilator control

INSTALLATION

Placement Wall or ceiling mounted

Venting Vertical

Electrical 115V

AESTHETICS

Cabinet Taupe color on metal matches Bryant furnace and fan coils

Dimensions 45.25'H x 24'W x 24.25'D

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 79%
• Cooling Efficiency: 52%
• Heating Efficiency: 79%
• Type: Energy recovery
• Capacity: 0
• Air Flow Cubic Ft Min: 100 cubic ft/min
• Sound: 0
• Efficiency Range: 70 to 79.9% ASE

Features

• Brings in fresh air and expels stale, sometimes unhealthy air
• Pre-conditions incoming air to minimize energy loss
• Reduces humidity in summer from incoming fresh air
• Prefilters particulates from incoming air and outgoing air to protect core
• Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
• Capable of intermittent- or continuous operation depending on control used
• Automatically defrosts when outdoor temperatures are below 23°F
• Designed for quiet operation
• 10-year parts limited warranty upon timely registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

EFFICIENCY

Heating Recovery (ASE) Up to 79% at 32 °F

Cooling Recovery (TRE) Up to 52% at 95 °F

ENERGY STAR® Canada qualified

PERFORMANCE

Maximum Airflow 100 cubic feet per minute

Sound Quiet operation

CONVENIENCES

Filter Change Easy access hinged door for filter cleaning and core cleaning

TECHNOLOGY

Core Moisture absorbing, crossflow, enthalpic core

Core Protection Incoming and outgoing air is prefiltered

Compatible Controls Evolution ® or separate ventilator control

INSTALLATION

Placement Wall or ceiling mounted

Venting Horizontal

Electrical 115V

AESTHETICS

Cabinet Taupe color on metal matches Bryant furnace and fan coils

Dimensions 12.25'H x 27.25'W x 20'D

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 78%
• Heating Efficiency: 78%
• Type: Heat recovery
• Capacity: 0
• Air Flow Cubic Ft Min: 100 cubic ft/min
• Sound: 0
• Efficiency Range: 70 to 79.9% ASE

Features

• Brings in fresh air and expels stale, sometimes unhealthy air
• High-efficiency heat recovery core pre-conditions incoming air to minimize heat energy loss
• Prefilters particulates from incoming air and outgoing air to protect core
• Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
• Capable of intermittent- or continuous operation depending on control used
• Automatically defrosts when outdoor temperatures are below 23°F
• Designed for quiet operation
• 10-year parts limited warranty upon timely registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

EFFICIENCY

Heating Recovery (ASE) Up to 78% at 32 °F

ENERGY STAR® Canada qualified

PERFORMANCE

Maximum Airflow 100 cubic feet per minute

Sound Quiet operation

CONVENIENCES

Filter Change Easy access hinged door for filter cleaning and core cleaning

TECHNOLOGY

Core Polypropylene, crossflow designed core

Core Protection Incoming and outgoing air is prefiltered

Compatible Controls Evolution ® or separate ventilator control

INSTALLATION

Placement Wall or ceiling mounted

Venting Horizontal

Electrical 115V

AESTHETICS

Cabinet Taupe color on metal matches Bryant furnace and fan coils

Dimensions 12.25'H x 27.25'W x 20'D

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 81%
• Heating Efficiency: 81%
• Type: Heat recovery
• Capacity: 0
• Air Flow Cubic Ft Min: 250 cubic ft/min
• Sound: 0
• Efficiency Range: 80 to 89.9% ASE

Features

• Brings in fresh air and expels stale, sometimes unhealthy air
• High-efficiency heat recovery core pre-conditions incoming air to minimize heat energy loss
• Prefilters particulates from incoming air and outgoing air to protect core
• Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
• Capable of intermittent- or continuous operation depending on control used
• Automatically defrosts when outdoor temperatures are below 23°F
• Designed for quiet operation
• 10-year parts limited warranty upon timely registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

EFFICIENCY

Heating Recovery (ASE) Up to 81% at 32 °F

ENERGY STAR® Canada qualified

PERFORMANCE

Maximum Airflow 250 cubic feet per minute (HRVXXLHBXXXX model), 150 cubic feet per minute (HRVXXLHBXXXX model)

Sound Quiet operation

CONVENIENCES

Filter Change Easy access hinged door for filter cleaning and core cleaning

TECHNOLOGY

Core Polypropylene, crossflow designed core

Core Protection Incoming and outgoing air is prefiltered

Compatible Controls Evolution ® or separate ventilator control

INSTALLATION

Placement Wall or ceiling mounted

Venting Horizontal

Electrical 115V

AESTHETICS

Cabinet Taupe color on metal matches Bryant furnace and fan coils

Dimensions 16.5'H x 30.25'W x 17.25'D

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 72%
• Cooling Efficiency: 52%
• Heating Efficiency: 72%
• Type: Energy recovery
• Capacity: 0
• Air Flow Cubic Ft Min: 250 cubic ft/min
• Sound: 0
• Efficiency Range: 70 to 79.9% ASE

Features

• Brings in fresh air and expels stale, sometimes unhealthy air
• Pre-conditions incoming air to minimize energy loss
• Reduces humidity in summer from incoming fresh air
• Prefilters particulates from incoming air and outgoing air to protect core
• Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
• Capable of intermittent- or continuous operation depending on control used
• Automatically defrosts when outdoor temperatures are below 23°F
• Designed for quiet operation
• 10-year parts limited warranty upon timely registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

EFFICIENCY

Heating Recovery (ASE) Up to 72% at 32 °F

Cooling Recovery (TRE) Up to 52% at 95 °F

ENERGY STAR® Canada qualified

Moisture Transfer Up to 72% at 32 °F

PERFORMANCE

Maximum Airflow 250 cubic feet per minute

Sound Quiet operation

CONVENIENCES

Filter Change Easy access hinged door for filter cleaning and core cleaning

TECHNOLOGY

Core Moisture absorbing, crossflow, enthalpic core

Core Protection Incoming and outgoing air is prefiltered

Compatible Controls Evolution ® or separate ventilator control

INSTALLATION

Placement Wall or ceiling mounted

Venting Horizontal

Electrical 115V

AESTHETICS

Cabinet Taupe color on metal matches Bryant furnace and fan coils

Dimensions 17'H x 39'W x 17.25'D

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 79%
• Cooling Efficiency: 52%
• Heating Efficiency: 79%
• Type: Energy recovery
• Capacity: 0
• Air Flow Cubic Ft Min: 100 cubic ft/min
• Sound: 0
• Efficiency Range: 70 to 79.9% ASE

Features

• Brings in fresh air and expels stale, sometimes unhealthy air
• Pre-conditions incoming air to minimize energy loss
• Reduces humidity in summer from incoming fresh air
• Prefilters particulates from incoming air and outgoing air to protect core
• Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
• Capable of intermittent- or continuous operation depending on control used
• Automatically defrosts when outdoor temperatures are below 23°F
• Designed for quiet operation
• 10-year parts limited warranty upon timely registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

EFFICIENCY

Heating Recovery (ASE) Up to 79% at 32 °F

Cooling Recovery (TRE) Up to 52% at 95 °F

ENERGY STAR® Canada qualified

Moisture Transfer Up to 72% at 32 °F

PERFORMANCE

Maximum Airflow 100 cubic feet per minute

Sound Quiet operation

CONVENIENCES

Filter Change Easy access hinged door for filter cleaning and core cleaning

TECHNOLOGY

Core Moisture absorbing, crossflow, enthalpic core

Core Protection Incoming and outgoing air is prefiltered

Compatible Controls Evolution ® or separate ventilator control

INSTALLATION

Placement Wall or ceiling mounted

Venting Vertical

Electrical 115V

AESTHETICS

Cabinet Taupe color on metal matches Bryant furnace and fan coils

Dimensions 16.25'H x 23.75'W x 20'D

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 78%
• Heating Efficiency: 78%
• Type: Heat recovery
• Capacity: 0
• Air Flow Cubic Ft Min: 100 cubic ft/min
• Sound: 0
• Efficiency Range: 70 to 79.9% ASE

Features

• Brings in fresh air and expels stale, sometimes unhealthy air
• High-efficiency heat recovery core pre-conditions incoming air to minimize heat energy loss
• Prefilters particulates from incoming air and outgoing air to protect core
• Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
• Capable of intermittent- or continuous operation depending on control used
• Automatically defrosts when outdoor temperatures are below 23°F
• Designed for quiet operation
• 10-year parts limited warranty upon timely registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

EFFICIENCY

Heating Recovery (ASE) Up to 78% at 32 °F

ENERGY STAR® Canada qualified

PERFORMANCE

Maximum Airflow 100 cubic feet per minute

Sound Quiet operation

Core LifeVaries with use - moderate use: approximately 1 year

CONVENIENCES

Filter Change Easy access hinged door for filter cleaning and core cleaning

TECHNOLOGY

Core Polypropylene, crossflow designed core

Core Protection Incoming and outgoing air is prefiltered

Compatible Controls Evolution ® or separate ventilator control

INSTALLATION

Placement Wall or ceiling mounted

Venting Vertical

Electrical 115V

AESTHETICS

Cabinet Taupe color on metal matches Bryant furnace and fan coils

Dimensions 16.25'H x 23.75'W x 20'D

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 78%
• Heating Efficiency: 78%
• Type: Heat recovery
• Capacity: 0
• Air Flow Cubic Ft Min: 157 cubic ft/min
• Sound: 0
• Efficiency Range: 70 to 79.9% ASE

Features

• Brings in fresh air and expels stale, sometimes unhealthy air
• High-efficiency heat recovery core pre-conditions incoming air to minimize heat energy loss
• Prefilters particulates from incoming air and outgoing air to protect core
• Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
• Capable of intermittent- or continuous operation depending on control used
• Automatically defrosts when outdoor temperatures are below 23°F
• Designed for quiet operation
• 10-year parts limited warranty upon timely registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

EFFICIENCY

Heating Recovery (ASE) Up to 78% at 32 °F

ENERGY STAR® Canada qualified

PERFORMANCE

Maximum Airflow 157 cubic feet per minute

Sound Quiet operation

CONVENIENCES

Filter Change Easy access hinged door for filter cleaning and core cleaning

TECHNOLOGY

Core Polypropylene, crossflow designed core

Core Protection Incoming and outgoing air is prefiltered

Compatible Controls Evolution ® or separate ventilator control

INSTALLATION

Placement Wall or ceiling mounted

Venting Vertical

Electrical 115V

AESTHETICS

Cabinet Taupe color on metal matches Bryant furnace and fan coils

Dimensions 24.75'H x 23.75'W x 15'D

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Type: Slab
• Application: Horizontal
• Capacity: 0
• Sound: 0

Features

• Puron ®  refrigerant
• Refrigerant-specific Thermostatic Expansion Valve metering device
• Horizontal application
• Exclusive DuraCoatâ„¢ tin-plated coils available
• Cased clab-coil design
• Grooved copper tubing
• Foil-faced insulation
• Easy coil replacement
• Tapered drain pan
• 10-year parts limited warranty upon registration1

Specifications

PERFORMANCE

Warranty 10-year parts limited warranty upon registration1

TECHNOLOGY

Refrigerant Puron ® refrigerant

Coil Configuration Slab, Cased

Features Thermostatic Expansion Valve

Cooling Capacity (tons) 1.5 - 5

Installation Horizontal

AESTHETICS

Construction 22 gauge steel cabinet

Paint Taupe metallic

Cabinet Screws 1 size; matches furnace

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

• Type: Cased A
• Application: Multipoise
• Capacity: 0
• Sound: 0

Features

• Puron® refrigerant
• Puron refrigerant-specific Thermostatic Expansion Valve metering device
• Horizontal, upflow and downflow applications
• Cased design
• Exclusive DuraCoatâ„¢ tin-plated copper coils available
• Easy-to-replace sloped drain pans
• High tech fin technology
• 10-year parts limited warranty upon registration1

Specifications

PERFORMANCE

Warranty 10-year parts limited warranty upon registration1

TECHNOLOGY

Refrigerant Puron ® refrigerant

Coil Configuration Cased A

Features Thermostatic Expansion Valve

Cooling Capacity (tons) 1.5 - 5

Installation Multipoise

AESTHETICS

Construction 22 gauge steel cabinet

Paint Taupe metallic

Cabinet Screws 1 size; matches furnace

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

• Type: Cased A
• Application: Vertical
• Capacity: 0
• Sound: 0

Features

• Puron ®  refrigerant
• Puron refrigerant-specific Thermostatic Expansion Valve metering device
• Upflow/downflow applications
• Exclusive DuraCoatâ„¢ tin-plated coils available
• Cased and uncased designs available
• Easy access coils
• Sloped drain pan
• 22-gauge cabinet
• 10-year parts limited warranty upon registration1

Specifications

PERFORMANCE

Warranty 10-year parts limited warranty upon registration1

TECHNOLOGY

Refrigerant Puron ® refrigerant

Coil Configuration Cased A

Features Thermostatic Expansion Valve

Cooling Capacity (tons) 1.5 - 5

Installation Vertical

AESTHETICS

Construction 22 gauge steel cabinet

Paint Taupe metallic

Cabinet Screws 1 size; matches furnace

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

• Type: Cased N
• Application: Vertical
• Capacity: 0
• Sound: 0

Features

• Puron ®  refrigerant
• Puron refrigerant-specific Thermostatic Expansion Valve metering device
• Upflow and downflow applications
• Exclusive DuraCoatâ„¢ tin-plated coils available
• Cased or uncased N-coil design
• Sloped drain pan
• Grooved copper tubing
• High tech fin technology
• 10-year parts limited warranty upon registration1

Specifications

Warranty 10-year parts limited warranty upon registration1

TECHNOLOGY

Refrigerant Puron ® refrigerant

Coil Configuration Cased N

Features Thermostatic Expansion Valve

Cooling Capacity (tons) 1.5 - 5

Installation Vertical

AESTHETICS

Construction 22 gauge steel cabinet

Paint Taupe metallic

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

• Type: Uncased A
• Application: Vertical
• Capacity: 0
• Sound: 0

Features

• Puron ®  refrigerant
• Puron refrigerant-specific Thermostatic Expansion Valve metering device
• Upflow/downflow applications
• Exclusive DuraCoatâ„¢ tin-plated coils available
• Cased and uncased designs available
• Easy access coils
• Sloped drain pan
• 22-gauge cabinet
• 10-year parts limited warranty upon registration1

Specifications

PERFORMANCE

Warranty 10-year parts limited warranty upon registration1

TECHNOLOGY

Refrigerant Puron ® refrigerant

Coil Configuration Uncased A

Features Thermostatic Expansion Valve

Cooling Capacity (tons) 1.5 - 5

Installation Vertical

AESTHETICS

Construction 22 gauge steel cabinet

Paint Taupe metallic

Cabinet Screws 1 size; matches furnace

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

• Water Vapour Output: 18 gal./day
• Capacity: 0
• Sound: 0

Features

• Electric fan, vapor dispersal for better moisture delivery
• Higher capacity type for larger homes
• Replaceable, treated aluminum evaporator pad
• Front-facing, easy-access door
• Low-noise operation
• A better choice for homes with heat pumps
• 10-year parts limited warranty upon timely registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

PERFORMANCE

Capacity 18 gallons per day

Sound Quiet operation

TECHNOLOGY

Dispersal Fan type

Evaporator Pad Treated, expanded aluminum

Compatible controls Evolution ® control, Preferredâ„¢ Thermidistatâ„¢ or separate humidifier control

INSTALLATION

Installation Can be mounted onto units installed in upflow, downflow or horizontal positions

Electrical 120V

AESTHETICS

Outer casing Taupe color on UV-resistant thermoplastic matches Bryant furnace and fan coils

Dimensions 18'H x 16'W x 10.25'D

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Water Vapour Output: 12 gal./day
• Capacity: 0
• Sound: 0

Features

• Furnace or fan coil dependent dispersal
• Solenoid valve and water distribution system
• Large or small capacity models available
• Treated aluminum or water-saving paper evaporator pad models available
• Front-facing, easy-access door
• Nearly silent operation
• Use with any type of cooling system
• 10-year parts limited warranty upon timely registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

PERFORMANCE

Capacity 12 gallons per day

Sound Nearly silent

TECHNOLOGY

Dispersal Uses blower from furnace or fan coil

Damper Built-in bypass

Evaporator Pad Treated, expanded aluminum

Compatible controls Evolution ® control, Preferredâ„¢ Thermidistatâ„¢ or separate humidifier control

INSTALLATION

Installation Can be mounted onto units installed in upflow, downflow or horizontal positions

Electrical 24V powered by furnace or fan coil

AESTHETICS

Outer casing Taupe color on UV-resistant thermoplastic matches Bryant furnace and fan coils

Dimensions 13'H x 14'W x 10.25'D

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Water Vapour Output: 12 gal./day
• Capacity: 0
• Sound: 0

• Electric fan, vapor dispersal for better moisture delivery
• Replaceable, treated aluminum evaporator pad
• Front-facing, easy-access door
• Low-noise operation
• A better choice for homes with heat pumps
• 10-year parts limited warranty upon timely registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

PERFORMANCE

Capacity 12 gallons per day

Sound Quiet operation

TECHNOLOGY

Dispersal Fan type

Evaporator Pad Treated, expanded aluminum

Compatible controls Evolution ® control, Preferredâ„¢ Thermidistatâ„¢ or separate humidifier control

INSTALLATION

Installation Can be mounted onto units installed in upflow, downflow or horizontal positions

Electrical 120V

AESTHETICS

Outer casing Taupe color on UV-resistant thermoplastic

Dimensions 12'H x 12.5'W x 10.25'D

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

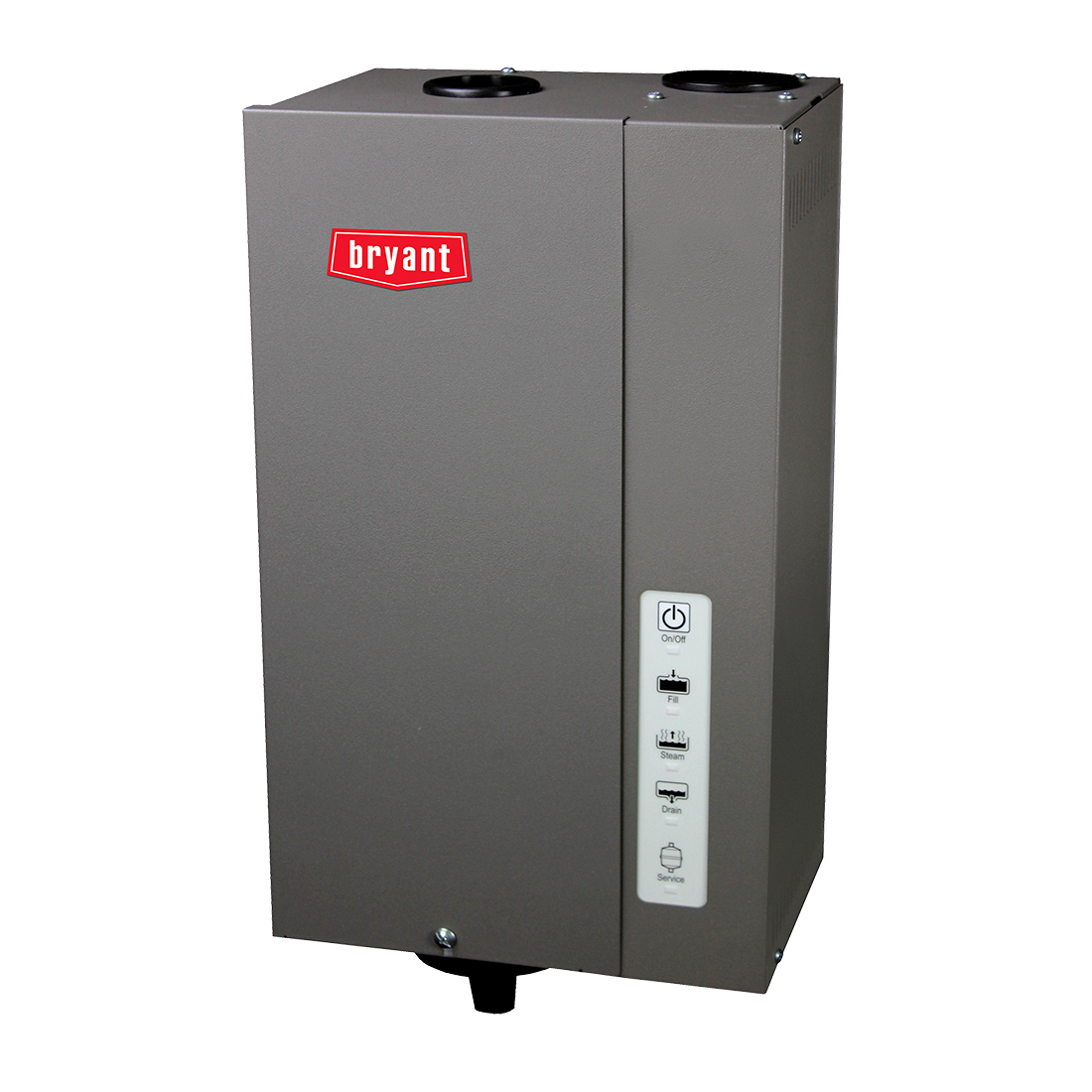

• Water Vapour Output: 34 gal./day
• Capacity: 0
• Sound: 0

Features

• Patented steam dispersion tube delivery for best moisture delivery
• Steam generation via electrodes
• Tolerant of a wide range of water conditions
• Highest capacity type best for larger homes
• Replaceable steam canister
• Front-facing, easy-access door
• Nearly silent operation
• A better choice for homes with heat pumps
• 10-year parts limited warranty upon timely registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

PERFORMANCE

Capacity Up to 34 gallons per day, depending upon voltage and amperage

Sound Nearly silent

TECHNOLOGY

Dispersal Electrode generated steam delivered via patented dispersion tube

Compatible controls Evolution ® control, Preferredâ„¢ Thermidistatâ„¢ or separate humidifier control

INSTALLATION

Installation Can be mounted onto units installed in upflow, downflow or horizontal positions or can be remote mounted

Electrical 120V, 208V or 240V

AESTHETICS

Outer casing Taupe color on metal matches Bryant furnace and fan coils

Dimensions 21'H x 10.25'W x 7.25'D

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Water Vapour Output: 17 gal./day
• Capacity: 0
• Sound: 0

Features

• Furnace or fan coil dependent dispersal
• Solenoid valve and water distribution system
• Large or small capacity models available
• 100% efficient water usage
• Treated aluminum or water-saving paper evaporator pad models available
• Front-facing, easy-access door
• Nearly silent operation
• Use with any type of cooling system
• 10-year parts limited warranty upon timely registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

PERFORMANCE

Capacity 17 gallons per day

Sound Nearly silent

TECHNOLOGY

Dispersal Uses blower from furnace or fan coil

Damper Built-in bypass

Evaporator Pad Treated, 100% water-use efficient expanded paper

Compatible controls Evolution ® control, Preferredâ„¢ Thermidistatâ„¢ or separate humidifier control

INSTALLATION

Installation Can be mounted onto units installed in upflow, downflow or horizontal positions

Electrical 24V powered by furnace or fan coil

AESTHETICS

Outer casing Taupe color on UV-resistant thermoplastic matches Bryant furnace and fan coils

Dimensions 15.5'H x 14'W x 10.25'D (HUMBBWBP)

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 16 to 19.9 SEER
• Energy Star Qualified: All sizes qualified
• Compressor: Two-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 16 to 19.9 SEER

Features

• Enjoy cool, summer comfort with up to 17.5 SEER/9.5 EER efficiency
• Take advantage of efficient electric heating well into the winter months with up to 9.5 HSPF efficiency
• Two-stage operation allows longer, more consistent comfort cycles on low stage for savings and comfort
• Enhanced summer dehumidification through two-stage operation
• Sound as low as 68 dB
• Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Evolution® ConnexTM control for ultimate performance
• AeroQuiet SystemTM design
• DuraGuardâ„¢ Plus protection system
• Environmentally-sound Puron® refrigerant
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 17.5 SEER/13.5 EER cooling; Up to 9.5 HSPF heating

ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all models/sizes

Cooling and heating stages Two-stage operation for greater efficiency

Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies

COMFORT MANAGEMENT

Cooling 2-stage operation for longer low cycle cooling to minimize temperature fluctuation

Dehumidification Better humidity management from 2-stage units when managed by Evolution ConnexTM control

SOUND

Quiet levels During lowest capacity cooling operating condition: 68 dB

AeroQuietTM System II design Pressure equalizer valve, compressor sound blanket; quiet mount split post compressor grommets, forward-swept fan blade

CONVENIENCES

Notifications Maintenance reminders and service notices through the advanced system diagnostics of the Evolution Connex control

TECHNOLOGY

Compressor 2-stage scroll

Refrigerant Puron® refrigerant

Compatibility Designed for best efficiencies when part of Evolution system

Protections High pressure switch, loss of charge switch and filter drier

Diagnostics Enhanced diagnostics with Evolution control

Capacity 2-5 tons

AESTHETICS

Design Attractive DuraGuardâ„¢ Plus system

Construction Durable, sheet metal construction

Paint Baked-on, complete outer coverage, powder paint

*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 16 to 19.9 SEER
• Energy Star Qualified: All sizes qualified
• Compressor: Two-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 16 to 19.9 SEER

Features

• Enjoy cool, summer comfort with up to 19 SEER/13.7 EER efficiency
• Take advantage of efficient electric heating well into the winter months with up to 10 HSPF efficiency
• Two-stage operation allows longer, more consistent comfort cycles on low stage for savings and comfort
• Enhanced summer dehumidification through two-stage operation
• Sound as low as 66 dB (quiet as a vacuum)*
• Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Evolution® Connexâ„¢ control for ultimate performance
• AeroQuiet Systemâ„¢ design
• DuraGuardâ„¢ Plus protection system
• Environmentally-sound Puron® refrigerant
• 10-year parts limited warranty upon registration1

±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.

*Quietest size within each model group during most common cooling operating condition

1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 19 SEER/13.7 EER cooling; Up to 10 HSPF heating

ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all models/sizes

Cooling and heating stages Two-stage operation for greater efficiency

Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies

COMFORT MANAGEMENT

Cooling 2-stage operation for longer low cycle cooling to minimize temperature fluctuation

Dehumidification Better humidity management from 2-stage units when managed by Evolution Connexâ„¢ control

SOUND

Quiet levels During lowest capacity cooling operating condition: 66 dB

AeroQuietTM System II design Pressure equalizer valve, compressor sound blanket; quiet mount split post compressor grommets, forward-swept fan blade

CONVENIENCES

Notifications Maintenance reminders and service notices through the advanced system diagnostics of the Evolution Connex control

TECHNOLOGY

Compressor 2-stage scroll

Refrigerant Puron® refrigerant

Compatibility Designed for best efficiencies when part of Evolution system

Protections High pressure switch, loss of charge switch and filter drier

Diagnostics Enhanced diagnostics with Evolution control

Capacity 2-5 tons

AESTHETICS

Design Attractive DuraGuardTM Plus system

Construction Durable, sheet metal construction

Paint Baked-on, complete outer coverage, powder paint

*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 20+ SEER
• Energy Star Qualified: All sizes qualified
• Compressor: Variable-Speed
• Capacity: 0
• Sound: 0
• Efficiency Range: 20+ SEER

Features

• Enjoy cool, summer comfort with up to 20.5 SEER/16 EER efficiency
• Take advantage of efficient electric heating well into the winter months with up to 13 HSPF efficiency
• Optimal dehumidification capability with the Evolution ConnexTM control
• True variable-speed operation with longer, lower speed cycles to give you more energy savings and optimal  temperature management
• Exceptionally quiet operation in low speeds down to 58 dB in cooling mode and as low as 62 dB in heating mode
• Senses operating conditions and adjusts to enhance system reliability
• Excellent performance with zoned systems
• Uses non-ozone depleting Puron® refrigerant
• Sheet metal construction with baked-on, complete outer paint coverage for lasting durability against the elements
• Attractive, louvered cabinet protects the coil against physical damage
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 20.5 SEER/16 EER Up to 13 HSPF

ENERGY STAR® The model 280A meets the ENERGY STAR® Most Efficient 2014 guidelines in all sizes

Cooling and heating stages True variable-speed capability for load matching performance and exceptional energy efficiency

Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies

COMFORT MANAGEMENT

Cooling/Heating Best levels of Bryant comfort control to minimize temperature fluctuation

Dehumidification Optimal summer humidity management through low stage operation when managed by Evolution Connex control

SOUND

Quiet levels 58 dB during lowest capacity cooling operating condition

AeroQuietTM System II design Compressor sound blanket; quiet mount split post compressor grommets, forward-swept fan blade

Startup Soft start and smooth ramp up

CONVENIENCES

Notifications Maintenance reminders and service notices through the advanced system diagnostics of the Evolution Connex control

TECHNOLOGY

Compressor Variable-speed scroll with as wide as 40-100% capacity range in 1% increments

Control Inverter driven compressor managed by Evolution Connex control

Refrigerant Puron® refrigerant

Compatibility Designed for best efficiencies when part of Evolution system with variable-speed blower on indoor furnace or fan coil

Protections High pressure switch, suction pressure transducer, multiple temperature sensors and filter drier

Diagnostics Enhanced diagnostics with Evolution control

Capacity 2-5 tons

AESTHETICS

Protection Attractive DuraGuardTM Plus system

Construction Durable, sheet metal construction

Paint Baked-on, complete outer coverage, powder paint

*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 16 to 19.9 SEER
• Energy Star Qualified: All sizes qualified
• Compressor: Single-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 16 to 19.9 SEER

Features

• Enjoy cool, summer comfort with up to 16 SEER/13 EER efficiency
• Take advantage of efficient electric heating well into the winter months with up to 8.5 HSPF efficiency
• Sound as low as 68 dB
• Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Evolution® Connexâ„¢ control for ultimate performance
• AeroQuiet SystemTM
• DuraGuardâ„¢ Plus protection system
• Environmentally-sound Puron® refrigerant
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 16 SEER/13 EER cooling; Up to 8.5 HSPF heating

ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all models/sizes

Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies

SOUND

Quiet levels During lowest capacity cooling operating condition: 68 dB

AeroQuietTM System II design Pressure equalizer valve, compressor sound blanket; quiet mount split post compressor grommets, forward-swept fan blade

CONVENIENCES

Notifications Maintenance reminders and service notices through the advanced system diagnostics of the Evolution Connex control

TECHNOLOGY

Compressor Single-stage scroll

Refrigerant Puron® refrigerant

Compatibility Designed for best efficiencies when part of Evolution system

Protections High pressure switch, loss of charge switch and filter drier

Diagnostics Enhanced diagnostics with Evolution control

Capacity 1.5-5 tons

AESTHETICS

Design Attractive DuraGuardâ„¢ Plus system

Construction Durable, sheet metal construction

Paint Baked-on, complete outer coverage, powder paint

*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 16 to 19.9 SEER
• Energy Star Qualified: Some sizes qualified
• Compressor: Variable-Speed
• Capacity: 0
• Sound: 0
• Efficiency Range: 16 to 19.9 SEER

Features

• Enjoy cool, summer comfort with up to 18 SEER/12.5 EER efficiency
• Take advantage of efficient electric heating well into the winter months with up to 11 HSPF efficiency
• Optimal dehumidification capability with the Evolution ConnexTM control
• 5 stages of variable-speed operation with longer, lower stage cycles to give you more energy savings and better  temperature management
• Exceptionally quiet operation in low speeds down to 55 decibels
• Soft start and smooth ramp up to operating speeds
• Senses operating conditions and adjusts to enhance system reliability
• Excellent performance with zoned systems
• Bryant's smallest ducted, variable-speed heat pump can fit discreetly into your landscape
• Uses non-ozone depleting Puron® refrigerant
• Sheet metal construction with baked-on, complete outer paint coverage for lasting durability against the elements
• Attractive, louvered cabinet protects the coil against physical damage
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 18 SEER/12.5 EER; Up to 11 HSPF

ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in select sizes

Cooling and heating stages 5-stages for variable-speed operation for load matching performance

Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies

COMFORT MANAGEMENT

Cooling Excellent levels of Bryant comfort control to minimize temperature fluctuation

Dehumidification Optimal summer humidity management through low stage operation when managed by Evolution Connex control

SOUND

Quiet levels 55 dB during lowest capacity cooling operating condition

AeroQuietTM System II design Pressure equalizer valve, compressor sound blanket; quiet mount split post compressor grommets, forward-swept fan blade

Startup Soft start and smooth ramp up

CONVENIENCES

Notifications Maintenance reminders and service notices through the advanced system diagnostics of the Evolution Connex control

TECHNOLOGY

Compressor 5-stage rotary with as wide as 25-100% capacity range

Control Inverter driven compressor and fan motor managed by Evolution Connex control

Refrigerant Puron® refrigerant

Compatibility Designed for best efficiencies when part of Evolution system but compatible with 2-stage thermostats and suitable indoor products for 2-stage operation and option to step up to full Evolution system at later time

Protections High pressure switch, suction pressure transducer, multiple temperature sensors and filter drier

Diagnostics Enhanced diagnostics with Evolution control

Capacity 2-4 tons

AESTHETICS

Design Attractive DuraGuardâ„¢ Plus system

Construction Durable, sheet metal construction

Paint Baked-on, complete outer coverage, powder paint

*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 13 to 15.9 SEER
• Energy Star Qualified: Not qualified
• Compressor: Single-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 13 to 15.9 SEER

Features

• Enjoy cool, summer comfort with 14 SEER/12 EER efficiency
• Take advantage of efficient electric heating well into the winter months with 8.2 HSPF efficiency
• Sound as low as 72 dB
• Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Bryant® Housewiseâ„¢ thermostat
• DuraGuardâ„¢ protection system
• Coastal design unit offers added protection against corrosive salt air
• Environmentally-sound Puron® refrigerant
• 10-year parts limited warranty upon registration1
• 5-year coastal corosion parts limited warranty2

1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

2To the original owner, Bryant model 213ANC is covered by a 5-year seacoast corrosion limited warranty, as well as a 10-year parts limited warranty upon timely registration. The parts limited warranty period is five years if not registered within 90 days of installation. Jurisdictions where warranty benefi ts cannot be conditioned on registration will receive a 10-year parts limited warranty period. See warranty certicate at Bryant.com for complete details and restrictions.

±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency 14 SEER/12 EER cooling; 8.2 HSPF heating

Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies

SOUND

Quiet levels During lowest capacity cooling operating condition: 72 dB

CONVENIENCES

Remote access Manage your system from afar with remote access when paired with the Bryant Housewise Wi-Fi® thermostat

Reminders Automatic maintenance reminders and service alerts with the Bryant Housewise thermostat

TECHNOLOGY

Compressor Single-stage scroll

Refrigerant Puron® refrigerant

Protections High pressure switch, loss of charge switch and filter drier

Coastal TuffCoatâ„¢ added protection: corrosion-resistant fin epoxy phenolic thermoset coating; 100% paint coverage on outer casing

Controls supported Bryant Housewise Wi-Fi thermostat and other Preferred series thermostats

Capacity 1.5-5 tons

AESTHETICS

Design Attractive DuraGuardâ„¢ system

Construction Durable, sheet metal construction

Paint Baked-on, complete outer coverage, powder paint

*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 13 to 15.9 SEER
• Energy Star Qualified: All sizes qualified
• Compressor: Single-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 13 to 15.9 SEER

Features

• Enjoy cool, summer comfort with up to 15 SEER/12.5 EER efficiency
• Take advantage of efficient electric heating well into the winter months with up to 8.5 HSPF efficiency
• Sound as low as 69 dB (quiet as a vacuum)
• Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Bryant® Housewiseâ„¢ thermostat
• DuraGuardâ„¢ protection system
• Environmentally-sound Puron® refrigerant
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency 15 SEER/12.5 EER cooling; 8.5 HSPF heating

ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all models/sizes

Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies

SOUND

Quiet levels During lowest capacity cooling operating condition: 69 dB

CONVENIENCES

Remote access Manage your system from afar with remote access when paired with the Bryant Housewise Wi-Fi® thermostat

Reminders Automatic maintenance reminders and service alerts with the Bryant Housewise thermostat

TECHNOLOGY

Compressor Single-stage scroll

Refrigerant Puron® refrigerant

Protections High pressure switch, loss of charge switch and filter drier

Controls supported Bryant Housewise Wi-Fi thermostat and other Preferred series thermostats

Capacity 1.5-5 tons

AESTHETICS

Design Attractive DuraGuardâ„¢ system

Construction Durable, sheet metal construction

Paint Baked-on, complete outer coverage, powder paint

*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 16 to 19.9 SEER
• Energy Star Qualified: All sizes qualified
• Compressor: Two-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 16 to 19.9 SEER

Features

• Enjoy cool, summer comfort with up to 17.5 SEER/13.5 EER efficiency
• Take advantage of efficient electric heating well into the winter months with up to 9.5 HSPF efficiency
• Two-stage operation allows longer, more consistent comfort cycles on low stage for savings and comfort
• Enhanced summer dehumidification through two-stage operation
• Sound as low as 70 dB
• Enjoy Wi-Fi®±remote access capability to allow complete programming and change control from anywhere with the Bryant® Housewiseâ„¢ thermostat
• DuraGuardâ„¢ Plus protection system
• Environmentally-sound Puron® refrigerant
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 17.5 SEER/13.5 EER cooling; Up to 9.5 HSPF heating

ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all models/sizes

Cooling and heating stages Two-stage operation for greater efficiency

Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies

COMFORT MANAGEMENT

Cooling 2-stage operation for longer low cycle cooling to minimize temperature fluctuation

Dehumidification Better humidity management from 2-stage units when managed by Bryant® Housewiseâ„¢ thermostat

SOUND

Quiet levels During lowest capacity cooling operating condition: 70 dB

CONVENIENCES

Remote access Manage your system from afar with remote access when paired with the Bryant Housewise Wi-Fi® thermostat

Reminders Automatic maintenance reminders and service alerts with the Bryant Housewise thermostat

TECHNOLOGY

Compressor 2-stage scroll

Refrigerant Puron® refrigerant

Sound enhancements Compressor sound blanket

Protections High pressure switch, loss of charge switch and filter drier

Controls supported Bryant Housewise Wi-Fi thermostat and other Preferred series thermostats

Capacity 2-5 tons

AESTHETICS

Design Attractive DuraGuardâ„¢ Plus system

Construction Durable, sheet metal construction

Paint Baked-on, complete outer coverage, powder paint

*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 13 to 15.9 SEER
• Energy Star Qualified: Not qualified
• Compressor: Single-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 13 to 15.9 SEER

Features

• Ultra-compact for small spaces and for stacking in multi-family housing
• Enjoy cool summer comfort
• Take advantage of efficient electric heating well into the winter months
• Sound as low as 68 dB (quiet as a vacuum)
• Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Bryant® Housewiseâ„¢ thermostat
• Environmentally-sound Puron® refrigerant
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency 14 SEER/11.5 EER cooling; 8.2 HSPF heating

Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies

SOUND

Quiet levels During lowest capacity cooling operating condition: 68 dB

CONVENIENCES

Remote access Manage your system from afar with remote access when paired with the Bryant Housewise Wi-Fi® thermostat

Reminders Automatic maintenance reminders and service alerts with the Bryant Housewise thermostat

TECHNOLOGY

Compressor Single-stage scroll

Refrigerant Puron® refrigerant

Sound enhancements Compressor sound blanket

Protections High pressure switch, loss of charge switch and filter drier

Controls supported Bryant Housewise Wi-Fi thermostat and other Preferred series thermostats

Capacity 1-5 tons

AESTHETICS

Design Flow through design has galvanized steel construction, heavy-duty wire fan guard and baked-on powder paint

*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 16 to 19.9 SEER
• Energy Star Qualified: All sizes qualified
• Compressor: Single-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 16 to 19.9 SEER

Features

• Enjoy cool, summer comfort with up to 16 SEER/13 EER efficiency
• Take advantage of efficient electric heating well into the winter months with up to 9 HSPF efficiency
• Sound as low as 68 dB (quiet as a vacuum)
• Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Bryant® Housewiseâ„¢ thermostat
• DuraGuardâ„¢ Plus protection system
• Environmentally-sound Puron® refrigerant
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 16 SEER/13 EER cooling; Up to 9 HSPF heating

ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all models/sizes

Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies

SOUND

Quiet levels During lowest capacity cooling operating condition: 68 dB

CONVENIENCES

Remote access Manage your system from afar with remote access when paired with the Bryant Housewise Wi-Fi® thermostat

Reminders Automatic maintenance reminders and service alerts with the Bryant Housewise thermostat

TECHNOLOGY

Compressor Single-stage scroll

Refrigerant Puron® refrigerant

Sound enhancements Compressor sound blanket

Protections High pressure switch, loss of charge switch and filter drier

Controls supported Bryant Housewise Wi-Fi thermostat and other Preferred series thermostats

Capacity 1.5-5 tons

AESTHETICS

Design Attractive DuraGuardâ„¢ Plus system

Construction Durable, sheet metal construction

Paint Baked-on, complete outer coverage, powder paint

*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Compressor: Single-Stage
• Capacity: 0
• Sound: 0

Features

• Enjoy cool, summer comfort with up to 16 SEER/13 EER efficiency
• Take advantage of efficient electric heating well into the winter months with up to 9 HSPF efficiency
• Sound as low as 67 dB (quiet as a vacuum)
• Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Bryant® Housewiseâ„¢ thermostat
• DuraGuardâ„¢ Plus protection system
• Environmentally-sound Puron® refrigerant
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 16 SEER/13 EER cooling; Up to 9 HSPF heating

ENERGY STAR® Meets ENERGY STAR guidelines for high efficiency in all models/sizes

Hybrid Heat® system capable Allows gas furnace/heat pump system combinations for best winter heating efficiencies

SOUND

Quiet levels During lowest capacity cooling operating condition: 67 dB

CONVENIENCES

Remote access Manage your system from afar with remote access when paired with the Bryant Housewiseâ„¢ Wi-Fi® thermostat

Reminders Automatic maintenance reminders and service alerts with the Bryant Housewise thermostat

TECHNOLOGY

Compressor Single-stage scroll

Refrigerant Puron® refrigerant

Sound enhancements Compressor sound blanket

Protections High pressure switch, loss of charge switch and filter drier

Controls supported Bryant Housewise Wi-Fi thermostat and other Preferred series thermostats

Capacity 1.5-5 tons

AESTHETICS

Design Attractive DuraGuardâ„¢ Plus system

Construction Durable, sheet metal construction

Paint Baked-on, complete outer coverage, powder paint

*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 13 to 15.9 SEER
• Type: Heat Pumps
• Compressor: Single-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 13 to 15.9 SEER

Features

• Enjoy cool, summer comfort with 14 SEER and 11 EER efficiency
• Transition to winter with heating efficiency of up to 8.0 HSPF
• Compact cabinet is designed for limited space applications, including manufactured housing
• Galvanized steel cabinet with 'coil on top' design for lasting durability against the elements
• Louvered grille protects the coil against physical damage
• Solid cabinet base panels help prevent infiltration of dirt, debris and moisture
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency 14 SEER/11 EER cooling, 8.0 HSPF electric heating

Heating and Cooling Stages Single-stage operation

SOUND

Quiet Levels During most common cooling operating condition: 73 dB

CONVENIENCES

Filter Change Reminders With compatible control

TECHNOLOGY

Blower Motor High-efficiency fixed-speed

Compressor Single-stage scroll

Refrigerant Puron ® refrigerant

Optional Protection DuraCoatâ„¢ tin-plated coil protection for additional corrosion resistance

Capacity 2-5 tons

AESTHETICS

Design Narrow lot design

Construction Galvanized steel with high-tech composite (rust-free) base

Paint Baked-on urethane base coat and polyester top coat

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 13 to 15.9 SEER
• Type: Air Conditioners
• Compressor: Single-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 13 to 15.9 SEER

Features

• Enjoy efficient, cool summer comfort
• Enjoy the optimized comfort of multi-speed air delivery
• Blower-enhanced comfort during cooling operation through reduced humidity with appropriate control
• Galvanized steel cabinet with 'coil on top' design for lasting durability against the elements
• Heavy-duty wire grille protects the coil against physical damage
• Solid cabinet base panels help prevent infiltration of dirt, debris and moisture
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency 14 SEER / Up to 12 EER

Heating and Cooling Stages Single-stage operation

SOUND

Quiet Levels During most common cooling operating condition: 73 dB

CONVENIENCES

Filter Change Reminders With compatible control

TECHNOLOGY

Blower Motor High-efficiency multi-speed

Compressor Single-stage

Refrigerant Puron ® refrigerant

Optional Protection DuraCoatâ„¢ tin-plated coil protection for additional corrosion resistance

Capacity 2-5 tons

AESTHETICS

Design Dense wire coil guard for additional protection with solid panels below

Construction Galvanized steel with high-tech composite (rust-free) base

Paint Baked-on urethane base coat and polyester top coat

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 13 to 15.9 SEER
• Type: Gas Heating/Electric Cooling Systems
• Compressor: Single-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 13 to 15.9 SEER

Features

• Enjoy efficient, cool summer comfort
• Transition to winter with heat pump heating efficiency of 8.0 HSPF
• Keep warm and cozy with gas heating when the weather turns cold
• Enjoy the optimized comfort of multi-speed air delivery
• Blower-enhanced comfort during cooling operation through reduced humidity with appropriate control
• Galvanized steel cabinet with 'coil on top' design for lasting durability against the elements
• Heavy-duty wire grille protects the coil against physical damage
• Solid cabinet base panels help prevent infiltration of dirt, debris and moisture
• 20-year limited warranty on heat exchanger3 or Lifetime limited warranty with stainless steel option1
• 10-year parts limited warranty upon registration2

1To the original owner, when product is used in a residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 20-years (from Lifetime) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details.

2To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

3To the original owner, when product is used in a residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 15-years (from 20-years) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 14.5 SEER/ Up to 12 EER cooling; 8.0 HSPF; 81% AFUE

Heating Stages Single-stage operation

Cooling Stages Single-stage operation

SOUND

Quiet Levels During most common cooling operating condition: 73 dB

CONVENIENCES

Remote Access Manage your system from afar with remote access when paired with the Bryant Housewiseâ„¢ Wi-Fi ® thermostat

Reminders Automatic maintenance reminders and service alerts with the Housewise thermostat

TECHNOLOGY

Blower Motor High-efficiency multi-speed

Heat Exchanger Corrosion-resistant aluminized steel construction with optional upgrade to Stainless Steel

Gas Valve Single -stage

Igniter PerfectLightâ„¢ hot surface igniter (pilot-free)

Compressor Single-stage scroll

Refrigerant Puron ® refrigerant

Optional Protection DuraCoatâ„¢ tin-plated coil protection for additional corrosion resistance

Fuel Natural gas (convertible to liquid propane - LP) and electricity

Capacity Cooling - 2-5 tons / Heating - 40K-130K BTUH

AESTHETICS

Design Dense wire coil guard for additional protection with solid panels below

Construction Galvanized steel with high-tech composite (rust-free) base

Paint Baked-on urethane base coat and polyester top coat

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 13 to 15.9 SEER
• Type: Gas Heating/Electric Cooling Systems
• Compressor: Single-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 13 to 15.9 SEER

Features

• Keep warm and cozy with gas heating when the weather turns cold
• Enjoy the optimized comfort of multi-speed air delivery
• Blower-enhanced comfort during cooling operation through reduced humidity with appropriate control
• Galvanized steel cabinet with 'coil on top' design for lasting durability against the elements
• Heavy-duty wire grille protects the coil against physical damage
• Solid cabinet base panels help prevent infiltration of dirt, debris and moisture
• 20-year limited warranty on heat exchanger3 or Lifetime limited warranty with stainless steel option1
• 10-year parts limited warranty upon registration2

1To the original owner, when product is used in a residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 20-years (from Lifetime) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details.

2To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

3To the original owner, when product is used in a residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 15-years (from 20-years) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency 14 SEER / Up to 12 EER cooling; 81% AFUE

Heating Stages Single-stage operation

Cooling Stages Single-stage operation

SOUND

Quiet Levels During most common cooling operating condition: 73 dB

CONVENIENCES

Remote Access Manage your system from afar with remote access when paired with the Bryant Housewiseâ„¢ Wi-Fi ® thermostat

Reminders Automatic maintenance reminders and service alerts with the Housewise thermostat

TECHNOLOGY

Blower Motor High-efficiency multi-speed

Heat Exchanger Corrosion-resistant aluminized steel construction with optional upgrade to Stainless Steel

Gas Valve Single -stage

Igniter PerfectLightâ„¢ hot surface igniter (pilot-free)

Compressor Single-stage

Refrigerant Puron ® refrigerant

Optional Protection DuraCoatâ„¢ tin-plated coil protection for additional corrosion resistance

Fuel Natural gas (convertible to liquid propane - LP) and electricity

Capacity Cooling - 2-5 tons / Heating - 40K-130K BTUH

AESTHETICS

Design Dense wire coil guard for additional protection with solid panels below

Construction Galvanized steel with high-tech composite (rust-free) base

Paint Baked-on urethane base coat and polyester top coat

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 13 to 15.9 SEER
• Type: Heat Pumps
• Compressor: Single-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 13 to 15.9 SEER

Features

• Enjoy efficient, cool summer comfort
• Transition to winter with heat pump heating efficiency of 8.0 HSPF
• Enjoy the optimized comfort of multi-speed air delivery
• Blower-enhanced comfort during cooling operation through reduced humidity with appropriate control
• Galvanized steel cabinet with 'coil on top' design for lasting durability against the elements
• Heavy-duty wire grille protects the coil against physical damage
• Solid cabinet base panels help prevent infiltration of dirt, debris and moisture
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 14.5 SEER / Up to 12 EER cooling; 8.0 HSPF heating

Heating and Cooling Stages Single-stage operation

SOUND

Quiet Levels During most common cooling operating condition: 73 dB

CONVENIENCES

Remote Access Manage your system from afar with remote access when paired with the Bryant Housewiseâ„¢ Wi-Fi ® thermostat

Reminders Automatic maintenance reminders and service alerts with the Housewise thermostat

TECHNOLOGY

Blower Motor High-efficiency multi-speed

Compressor Single-stage scroll

Refrigerant Puron ® refrigerant

Optional Protection DuraCoatâ„¢ tin-plated coil protection for additional corrosion resistance

Capacity 2-5 tons

AESTHETICS

Design Dense wire coil guard for additional protection with solid panels below

Construction Galvanized steel with high-tech composite (rust-free) base

Paint Baked-on urethane base coat and polyester top coat

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 16 to 19.9 SEER
• Type: Air Conditioners
• Energy Star Qualified: All sizes qualified
• Compressor: Single-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 16 to 19.9 SEER

Features

• Enjoy cool, summer comfort up to 16 SEER & 12 EER efficiency
• Enjoy the optimized comfort of multi-speed air delivery
• Two-stage operation allows longer, more consistent comfort cycles on low stage for savings and comfort
• Enhanced humidity control during cooling operation through two-stage operation
• Galvanized steel cabinet with 'coil on top' design for lasting durability against the elements
• Louvered grille protects the coil against physical damage
• Solid cabinet base panels help prevent infiltration of dirt, debris and moisture
• 10-year parts limited warranty upon registration2
• Copper coil 5-year parts limited warranty

2To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 16 SEER/12 EER

ENERGY STAR® Meets ENERGY STAR ® guidelines for high efficiency in all models/sizes

Cooling Stages Two-stage operation for efficiency and comfort

SOUND

Quiet Levels During most common cooling operating condition: 72 dB

CONVENIENCES

Remote Access Manage your system from afar with remote access when paired with the Bryant HousewiseTM Wi-Fi® thermostat

Reminders Automatic maintenance reminders and service alerts with the Housewise tthermostat

TECHNOLOGY

Blower Motor High-efficiency multi-speed

Compressor Two-stage scroll

Refrigerant Puron® refrigerant

Refrigeran Management Thermostatic expansion valve

Optional Protection DuraCoatTM tin-plated coil protection for additional corrosion resistance

Capacity 2-5 tons

AESTHETICS

Design Coil on top, solid panels below

Construction Galvanized steel with high-tech composite (rust-free) base

Paint Baked-on urethane base coat and polyester top coat

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 13 to 15.9 SEER
• Type: Gas Heating/Electric Cooling Systems
• Energy Star Qualified: All sizes qualified
• Compressor: Two-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 13 to 15.9 SEER

Features

• Enjoy cool, summer comfort up to 15 SEER & 12 EER efficiency
• Transition to winter with heat pump heating efficiency of up to 8.5 HSPF
• Keep warm and cozy with gas heating when the weather turns cold
• Enjoy the optimized comfort of multi-speed air delivery
• Two-stage operation allows longer, more consistent heating and cooling cycles on low stage for savings and comfort
• Enhanced comfort during cooling operation through reduced humidity with appropriate control
• Galvanized steel cabinet with 'coil on top' design for lasting durability against the elements
• Louvered grille protects the coil against physical damage
• Solid cabinet base panels help prevent infiltration of dirt, debris and moisture
• 20-year limited warranty on heat exchanger3 or Lifetime limited warranty with stainless steel option1
• 10-year parts limited warranty upon registration2

1To the original owner, when product is used in a residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 20-years (from Lifetime) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details.

2To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

3To the original owner, when product is used in a residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 15-years (from 20-years) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 15 SEER/12 EER cooling; Up to 8.5 HSPF; 81% AFUE

ENERGY STAR® Meets ENERGY STAR ® guidelines for high efficiency on all models/sizes

Heating Stages Two-stage operation for efficiency and comfort

Cooling Stages Two-stage operation for efficiency and comfort

Hybrid Heat® System Gas furnace/heat pump system provides options for achieving the best heating efficiency for current conditions

SOUND

Quiet Levels During most common cooling operating condition: 68 dB

CONVENIENCES

Remote Access Manage your system from afar with remote access when paired with the Bryant Housewiseâ„¢ Wi-Fi ® thermostat

Reminders Automatic maintenance reminders and service alerts with the Housewise thermostat

TECHNOLOGY

Blower Motor High-efficiency multi-speed

Heat Exchanger Corrosion-resistant aluminized steel construction with optional upgrade to Stainless Steel

Gas Valve Two-stage

Igniter PerfectLightâ„¢ hot surface igniter (pilot-free)

Compressor Two-stage scroll

Refrigerant Puron ® refrigerant

Refrigerant Management Thermostatic expansion valve

Optional Protection DuraCoatâ„¢ tin-plated coil protection for additional corrosion resistance

Fuel Natural gas (convertible to liquid propane - LP) and electricity

Capacity Cooling - 2-5 tons / Heating - 40K-130K BTUH

AESTHETICS

Design Coil on top, solid panels below

Construction Galvanized steel with high-tech composite (rust-free) base

Paint Baked-on urethane base coat and polyester top coat

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 16 to 19.9 SEER
• Type: Gas Heating/Electric Cooling Systems
• Energy Star Qualified: All sizes qualified
• Compressor: Two-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 16 to 19.9 SEER

Features

• Enjoy cool, summer comfort up to 16 SEER & 12 EER efficiency
• Keep warm and cozy with gas heating when the weather turns cold
• Enjoy the optimized comfort of multi-speed air delivery
• Two-stage operation allows longer, more consistent heating and cooling cycles on low stage for savings and comfort
• Enhanced comfort during cooling operation through reduced humidity with appropriate control
• Galvanized steel cabinet with 'coil on top' design for lasting durability against the elements
• Louvered grille protects the coil against physical damage
• Solid cabinet base panels help prevent infiltration of dirt, debris and moisture
• 20-year limited warranty on heat exchanger3 or Lifetime limited warranty with stainless steel option1
• 10-year parts limited warranty upon registration2
• Copper coil 5-year parts limited warranty

1To the original owner, when product is used in a residence, a Lifetime heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 20-years (from Lifetime) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details.

2To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

3To the original owner, when product is used in a residence, a 20-year heat exchanger parts limited warranty upon timely registration of your new equipment. Warranty period is reduced to 15-years (from 20-years) on heat exchanger if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive the extended registered heat exchanger parts limited warranty period. See warranty certificate for details.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 16 SEER/12 EER cooling; Up to 81% AFUE

ENERGY STAR® Meets ENERGY STAR ® guidelines for high efficiency in all models/sizes

Heating Stages Two-stage operation for efficiency and comfort

Cooling Stages Two-stage operation for efficiency and comfort

SOUND

Quiet Levels During most common cooling operating condition: 72 dB

CONVENIENCES

Remote Access Manage your system from afar with remote access when paired with the Bryant Housewiseâ„¢ Wi-Fi ® thermostat

Reminders Automatic maintenance reminders and service alerts with the Housewise thermostat

TECHNOLOGY

Blower Motor High-efficiency multi-speed

Heat Exchanger Corrosion-resistant aluminized steel construction with optional upgrade to Stainless Steel

Gas Valve Two-stage

Igniter PerfectLightâ„¢ hot surface igniter (pilot-free)

Compressor Two-stage scroll

Refrigerant Puron ® refrigerant

Refrigerant Management Thermostatic expansion valve

Optional Protection DuraCoatâ„¢ tin-plated coil protection for additional corrosion resistance

Fuel Natural gas (convertible to liquid propane - LP) and electricity

Capacity Cooling - 2-5 tons / Heating - 40K-130K BTUH

AESTHETICS

Design Coil on top, solid panels below

Construction Galvanized steel with high-tech composite (rust-free) base

Paint Baked-on urethane base coat and polyester top coat

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 13 to 15.9 SEER
• Type: Heat Pumps
• Energy Star Qualified: All sizes qualified
• Compressor: Two-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 13 to 15.9 SEER

Features

• Enjoy cool, summer comfort up to 15.5 SEER & 12 EER efficiency
• Transition to winter with heat pump heating efficiency of up to 8.5 HSPF
• Enjoy the optimized comfort of multi-speed air delivery
• Two-stage operation allows longer, more consistent cycles on low stage for savings and comfort
• Enhanced humidity control during cooling operation through two-stage operation
• Galvanized steel cabinet with 'coil on top' design for lasting durability against the elements
• Louvered grille protects the coil against physical damage
• Solid cabinet base panels help prevent infiltration of dirt, debris and moisture
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 15.5 SEER/12 EER cooling; Up to 8.5 HSPF heating

ENERGY STAR® Meets ENERGY STAR ® guidelines for high efficiency on all models/sizes

Heating Stages Two-stage operation for efficiency and comfort

Cooling Stages Two-stage operation for efficiency and comfort

SOUND

Quiet Levels During most common cooling operating condition: 68 dB

CONVENIENCES

Remote Access Manage your system from afar with remote access when paired with the Bryant Housewiseâ„¢ Wi-Fi ® thermostat

Reminders Automatic maintenance reminders and service alerts with the Housewise thermostat

TECHNOLOGY

Blower Motor High-efficiency multi-speed

Compressor Two-stage scroll

Refrigerant Puron ® refrigerant

Management Thermostatic expansion valve

Optional Protection DuraCoatâ„¢ tin-plated coil protection for additional corrosion resistance

Fuel Natural gas (convertible to liquid propane - LP) and electricity

Capacity Cooling - 2-5 tons

AESTHETICS

Design Coil on top, solid panels below

Construction Galvanized steel with high-tech composite (rust-free) base

Paint Baked-on urethane base coat and polyester top coat

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Capacity: 0
• Sound: 0

Features

• Environmentally sound Puron® refrigerant
• Puron refrigerant-specific Thermostatic Expansion Valve or piston metering device
• Foil-faced insulation
• DuraTechâ„¢ coil protection for enhanced corrosion resistance
• High efficiency , 5 speed fan
• Enhanced indoor air quality
• Optional electrical resistance heat
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

PERFORMANCE

Warranty 10-year parts limited warranty upon registration1

Cooling capacity (BTUH) 18,000 - 60,000

CONTROLS

Controls Supported Standard thermostat

TECHNOLOGY

Refrigerant Puron® refrigerant

Features Thermostatic Expansion Valve or Piston metering device

Filter Washable filter

Blower High efficiency , 5 speed fan

Installation Multipoise

AESTHETICS

Construction Galvanized steel cabinet

Paint Prepainted

Dimensions (inches) 22 1/16 x 24 11/16 x 59 3/16'

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

• Capacity: 0
• Sound: 0

Features

• Environmentally sound Puron® refrigerant
• Puron refrigerant-specific Thermostatic Expansion Valve or piston metering device
• Foil-faced insulation
• DuraTechâ„¢ coil protection for enhanced corrosion resistance
• High efficiency , 5 speed fan
• Enhanced indoor air quality
• Optional electrical resistance heat
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

PERFORMANCE

Warranty 10-year parts limited warranty upon registration1

Cooling capacity (BTUH) 18,000 - 60,000

CONTROLS

Controls Supported Standard thermostat

TECHNOLOGY

Refrigerant Puron® refrigerant

Features Thermostatic Expansion Valve or Piston metering device

Filter Washable filter

Blower High efficiency , 5 speed fan

Installation Multipoise

AESTHETICS

Construction Galvanized steel cabinet

Paint Prepainted

Dimensions (inches) 22 1/16 x 24 11/16 x 59 3/16'

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

• Capacity: 0
• Sound: 0

Features

• All aluminium coils for enhanced corrosion resistance
• Environmentally sound Puron® refrigerant
• Puron refrigerant-specific Thermostatic Expansion Valve metering device
• ECM blower motor for ultimate comfort and ultra-quiet operation
• Fully insulated cabinet
• Optional electrical resistance heat
• Also available in an uncased model available
• 10-year parts limited warranty upon registration

Specifications

PERFORMANCE

Warranty 10-year parts limited warranty upon registration1

Cooling capacity (BTUH) 18,000 - 36,000

CONTROLS

Controls Supported Standard thermostat

TECHNOLOGY

Refrigerant Puron® refrigerant

Features Thermostatic Expansion Valve

Filter N/A

Blower 5 speed fan

Installation Horizontal

AESTHETICS

Construction Galvanized steel

Paint

Dimensions (inches)

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Capacity: 0
• Sound: 0

Features

• Environmentally sound Puron® refrigerant
• Puron refrigerant-specific Thermostatic Expansion Valve or piston metering device
• High efficiency 5-speed fan or standard efficiency, fixed speed fan
• Fully insulated cabinet
• Tin-plated copper tube, aluminum fin coils
• Optional electrical resistance heat
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

PERFORMANCE

Warranty 10-year parts limited warranty upon registration1

Cooling capacity (BTUH) 18,000 - 37,000

CONTROLS

Controls Supported Standard thermostat

TECHNOLOGY

Refrigerant Puron® refrigerant

Features Thermostatic Expansion Valve or Piston metering device

Filter N/A

Blower High efficiency, 5-speed or standard efficiency, fixed speed

Installation Upflow

AESTHETICS

Construction Galvanized steel

Paint Prepainted

Dimensions (inches) 22 x 19 x 39 1/2'

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

• Capacity: 0
• Sound: 0

Features

• Environmentally sound Puron® refrigerant
• Puron refrigerant-specific Thermostatic Expansion Valve metering device
• Cooling savings up to 16%
• Heating savings up to 10%
• DuraTechâ„¢ coil protection for enhanced corrosion resistance
• Variable speed fan
• Improved humidity control
• Enhanced indoor air quality
• Optional electrical resistance heat
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

PERFORMANCE

Warranty 10-year parts limited warranty upon registration1

Cooling capacity (BTUH) 18,000 - 60,000

CONTROLS

Controls Supported Standard thermostat

TECHNOLOGY

Refrigerant Puron® refrigerant

Features Thermostatic Expansion Valve

Filter Washable filter

Blower High efficiency, variable speed

Installation Multipoise

AESTHETICS

Construction 20-gage galvanized

Paint Prepainted

Dimensions (inches) 22 1/16 x 24 11/16 x 59 3/16'

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

• Capacity: 0
• Sound: 0

Features

• Environmentally sound Puron® refrigerant
• Puron refrigerant-specific Thermostatic Expansion Valve
• High efficiency. 2-speed fan
• DuraTechâ„¢ coil protection for enhanced corrosion resistance
• Fully insulated cabinet
• Optional electrical resistance heat
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

PERFORMANCE

Warranty 10-year parts limited warranty upon registration1

Cooling capacity (BTUH) 18,000 - 37,000

CONTROLS

Controls Supported Standard thermostat

TECHNOLOGY

Refrigerant Puron® refrigerant

Features Thermostatic Expansion Valve or  piston metering device

Filter N/A

Blower High efficiency, 5-speed or standard efficiency, fixed speed

Installation Upflow

AESTHETICS

Construction Galvanized steel

Paint Prepainted

Dimensions (inches) 22 x 19 x 39 1/2'

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

• Efficiency: 16 to 19.9 SEER
• Energy Star Qualified: All sizes qualified
• Compressor: Two-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 16 to 19.9 SEER

Features

• Two-stage operation allows longer, more consistent comfort cycles on low stage for savings and comfort
• Enhanced summer dehumidification through two-stage operation
• Sound as low as 70 dB (quiet as a vacuum)
• Enjoy Wi-Fi® remote access capability to allow complete programming and change control from anywhere with the Evolution® Connexâ„¢ control for ultimate performance
• DuraGuardâ„¢ Plus protection system
• Environmentally-sound Puron® refrigerant
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 17 SEER/13.5 EER

ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all models/sizes

Cooling stages Two-stage operation for efficiency and comfort

COMFORT MANAGEMENT

Cooling 2-stage operation for longer low cycle cooling to minimize temperature fluctuation

Dehumidification Better humidity management from 2-stage units when managed by Evolution Connexâ„¢ control

SOUND

Quiet levels During most common cooling operating condition: 70 dB

Fan motor Quiet, ECM ball bearing, 8-pole fan motor

CONVENIENCES

Remote access Manage your system from afar with remote access when paired with a Wi-Fi® enabled Connex control

Reminders Automatic maintenance reminders and service alerts with the Connex control

TECHNOLOGY

Compressor Two-stage scroll

Refrigerant Puron® refrigerant

Sound enhancements Quiet mount compressor grommets; compressor sound blanket; PSC fan motor

Protections High and low pressure switches; filter drier

Controls supported Evolution Connex control

Capacity 2-5 tons

AESTHETICS

Design DuraGuard Plusâ„¢ protection: heavy-gauge sheet metal construction; louvered steel coil guard; baked-on powder paint

*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 16 to 19.9 SEER
• Energy Star Qualified: All sizes qualified
• Compressor: Two-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 16 to 19.9 SEER

Features

• Two-stage operation allows longer, more consistent comfort cycles on low stage for savings and comfort
• Enhanced summer dehumidification through two-stage operation
• Sound as low as 70 dB (quiet as a vacuum)
• Enjoy Wi-Fi®± remote access capability to allow complete programming and change control from anywhere with the Evolution® Connexâ„¢control for ultimate performance
• DuraGuardâ„¢ Plus protection system
• Coastal design unit offers added protection against corrosive salt air
• Environmentally-sound Puron® refrigerant
• 10-year parts limited warranty upon registration1
• 5-year coastal corrosion parts limited warranty2

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

2To the original owner, this model is covered by a 5-year seacoast corrosion limited warranty. See warranty certificate for complete details

±Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 17 SEER/13.5 EER

ENERGY STAR® Meets ENERGY STAR® guidelines for high efficiency in all models/sizes

Cooling stages Two-stage operation for efficiency and comfort

COMFORT MANAGEMENT

Cooling 2-stage operation for longer low cycle cooling to minimize temperature fluctuation

Dehumidification Better humidity management from 2-stage units when managed by Evolution Connexâ„¢ control

SOUND

Quiet levels During most common cooling operating condition: 70 dB

Fan motor Quiet, ECM ball bearing, 8-pole fan motor

CONVENIENCES

Remote access Manage your system from afar with remote access when paired with a Wi-Fi® enabled Connex control

Reminders Automatic maintenance reminders and service alerts with the Connex control

TECHNOLOGY

Compressor 5-stage rotary with 25-100% capacity range

Control Inverter driven compressor and fan motor managed by Evolution Connex control

Refrigerant Puron® refrigerant

Compatibility Designed for best efficiencies when part of Evolution system but compatible with 2-stage thermostats and suitable indoor products for 2-stage operation and step up to full Evolution system at later time

Protections High and low pressure switches; filter drier

Capacity 2-4 tons

AESTHETICS

Design DuraGuard Plusâ„¢ protection: heavy-gauge sheet metal construction; louvered steel coil guard; baked-on powder paint

*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 20+ SEER
• Energy Star Qualified: All sizes qualified
• Compressor: Variable-Speed
• Capacity: 0
• Sound: 0
• Efficiency Range: 20+ SEER

Features

• Enjoy cool, summer comfort with up to 20.5 SEER/15.5 EER efficiency
• Optimal dehumidification capability with the Evolution ConnexTM control
• True variable-speed operation with longer, lower speed cycles to give you more energy savings and optimal temperature management
• Exceptionally quiet operation in low speeds down to 58 dB in cooling mode
• Senses operating conditions and adjusts to enhance system reliability
• Excellent performance with zoned systems
• Uses non-ozone depleting Puron® refrigerant
• Sheet metal construction with baked-on, complete outer paint coverage for lasting durability against the elements
• Attractive, louvered cabinet protects the coil against physical damage
• 10-year parts limited warranty upon registration1

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 20.5 SEER/15.5 EER

Cooling stages True variable-speed capability for load matching performance

COMFORT MANAGEMENT

Cooling  Best levels of Bryant comfort control to minimize temperature fluctuation

Dehumidification Optimal summer humidity management through low stage operation when managed by Evolution ConnexTM control

SOUND

Quiet levels 58 dB during lowest capacity cooling operating condition

AeroQuietTM System II design Compressor sound blanket; quiet mount split post compressor grommets, forward-swept fan blade

Startup Soft start and smooth ramp up

CONVENIENCES

Notifications Maintenance reminders and service notices through the advanced system diagnostics of the Evolution Connex control

TECHNOLOGY

Compressor Variable-speed scroll with as wide as 40-100% capacity range in 1% increments

Controls Inverter driven compressor managed by Evolution Connex control

Refrigerant Puron® refrigerant

Compatibility Designed for best efficiencies when part of Evolution system with variable-speed blower on indoor furnace or fan coil

Protections High pressure switch, suction pressure transducer, multiple temperature sensors and filter drier

Diagnostics Enhanced diagnostics with Evolution control

Capacity 2-5 tons

AESTHETICS

Protection Attractive DuraGuardTM Plus system

Construction  Durable, sheet metal construction

Paint  Baked-on, complete outer coverage, powder paint

*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

• Efficiency: 16 to 19.9 SEER
• Energy Star Qualified: All sizes qualified
• Compressor: Single-Stage
• Capacity: 0
• Sound: 0
• Efficiency Range: 16 to 19.9 SEER

Features
